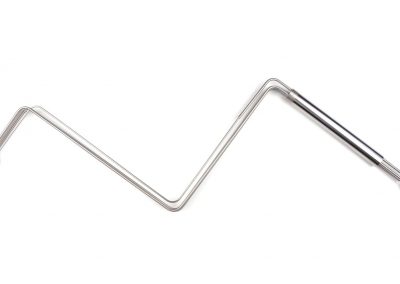

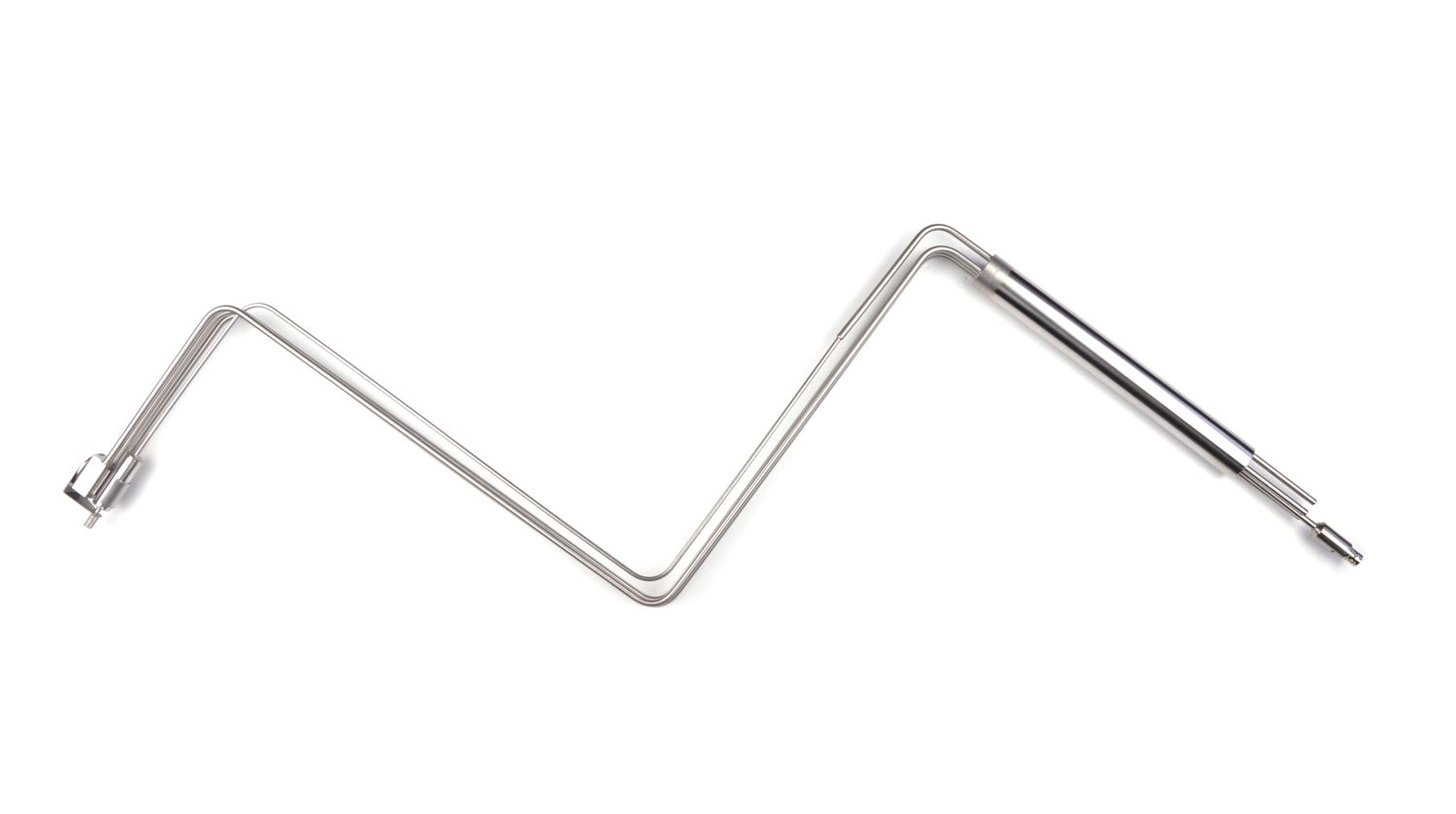

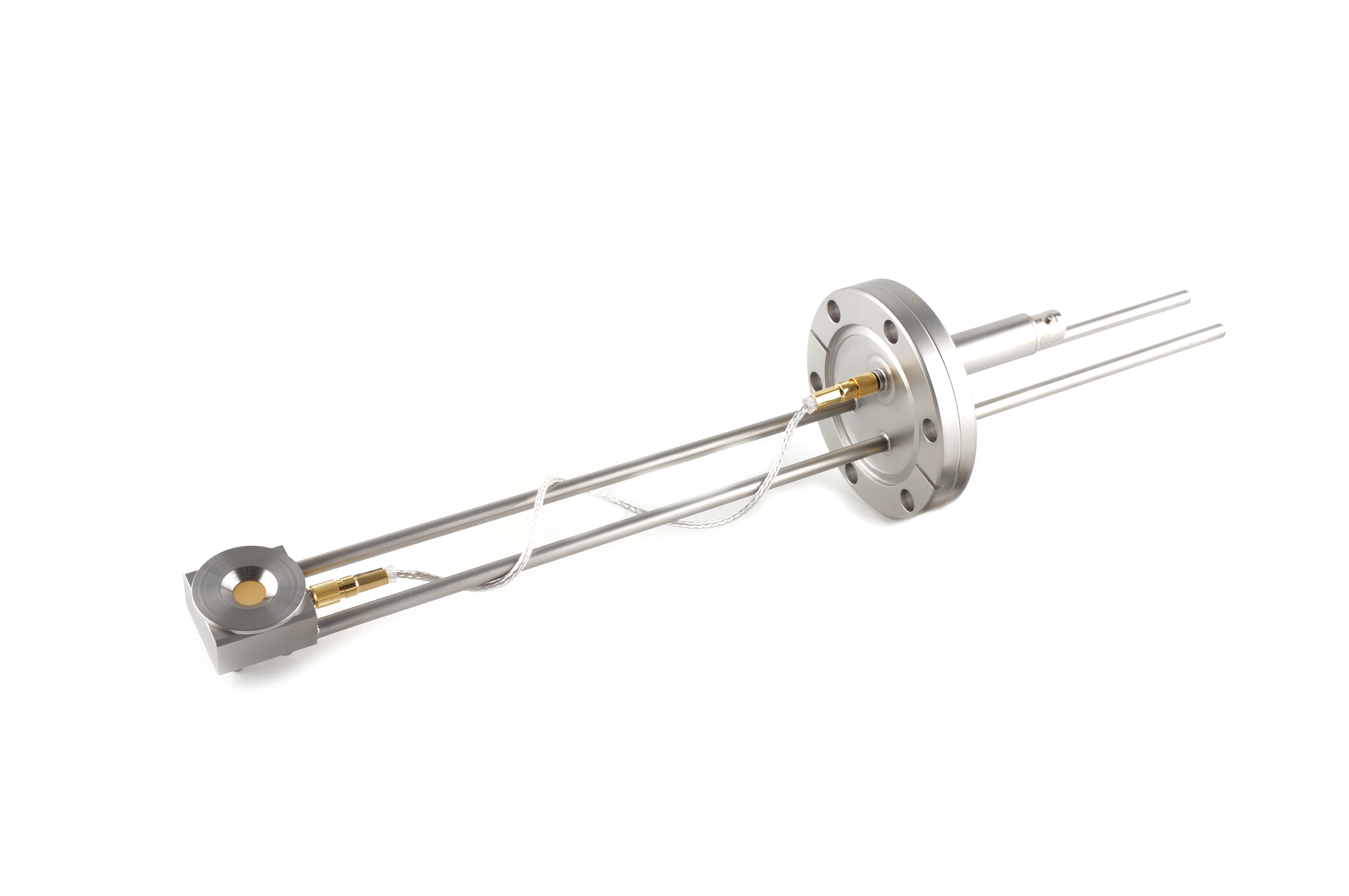

BeamTec is the exclusive distributor of McVac Inc., that is specialized in quartz crystal sensor heads for the thin film measurement and static vacuum feedthroughs. The product line includes sensor heads and feedhtroughs for the high vacuum and UHV range with various kind of flange configurations. We are also able to design and manufacture components to customer-specific requirements.

A selection of thin film measurement components can be found in our online shop

https://shop.beamtec.de/shop/en/thin-film-measurement/

Features & Benefits

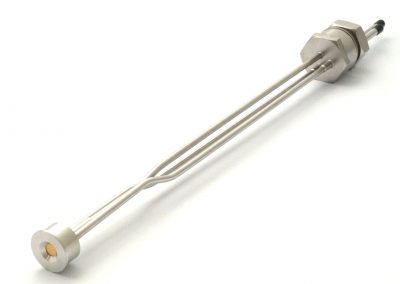

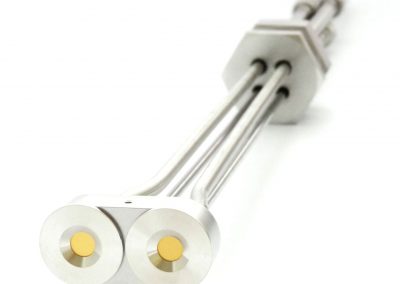

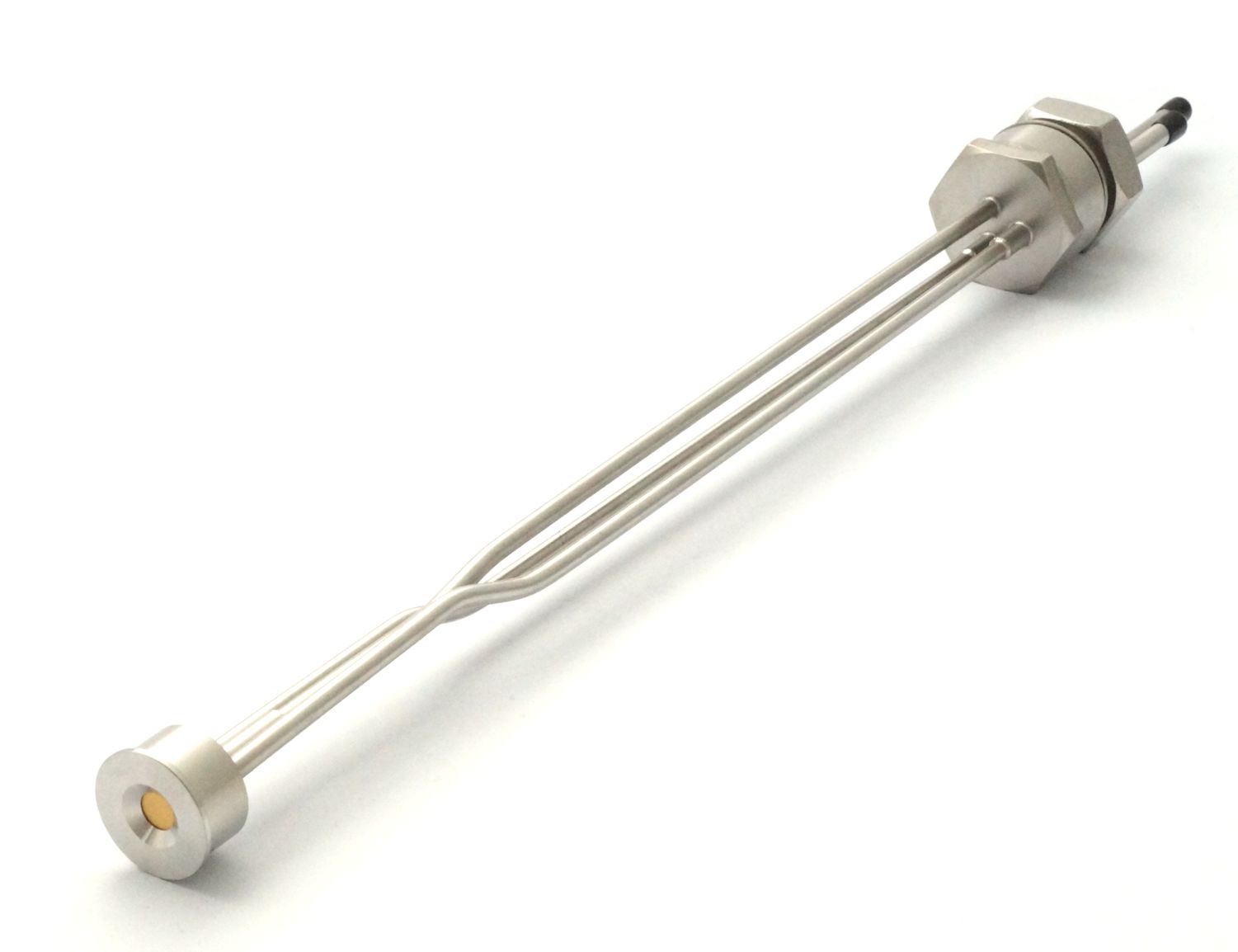

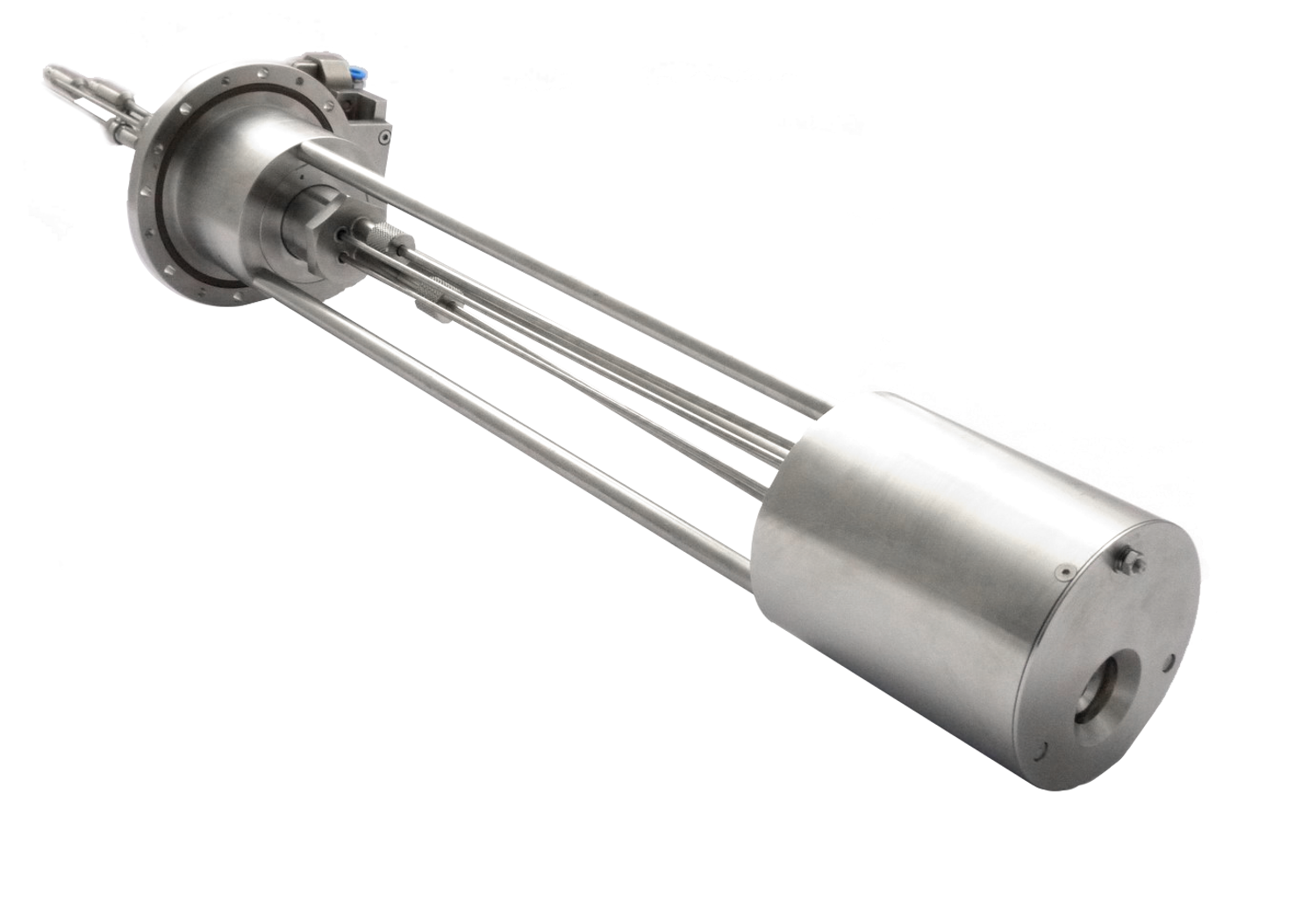

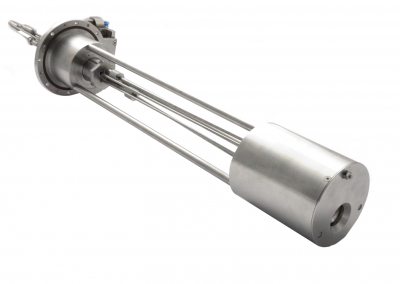

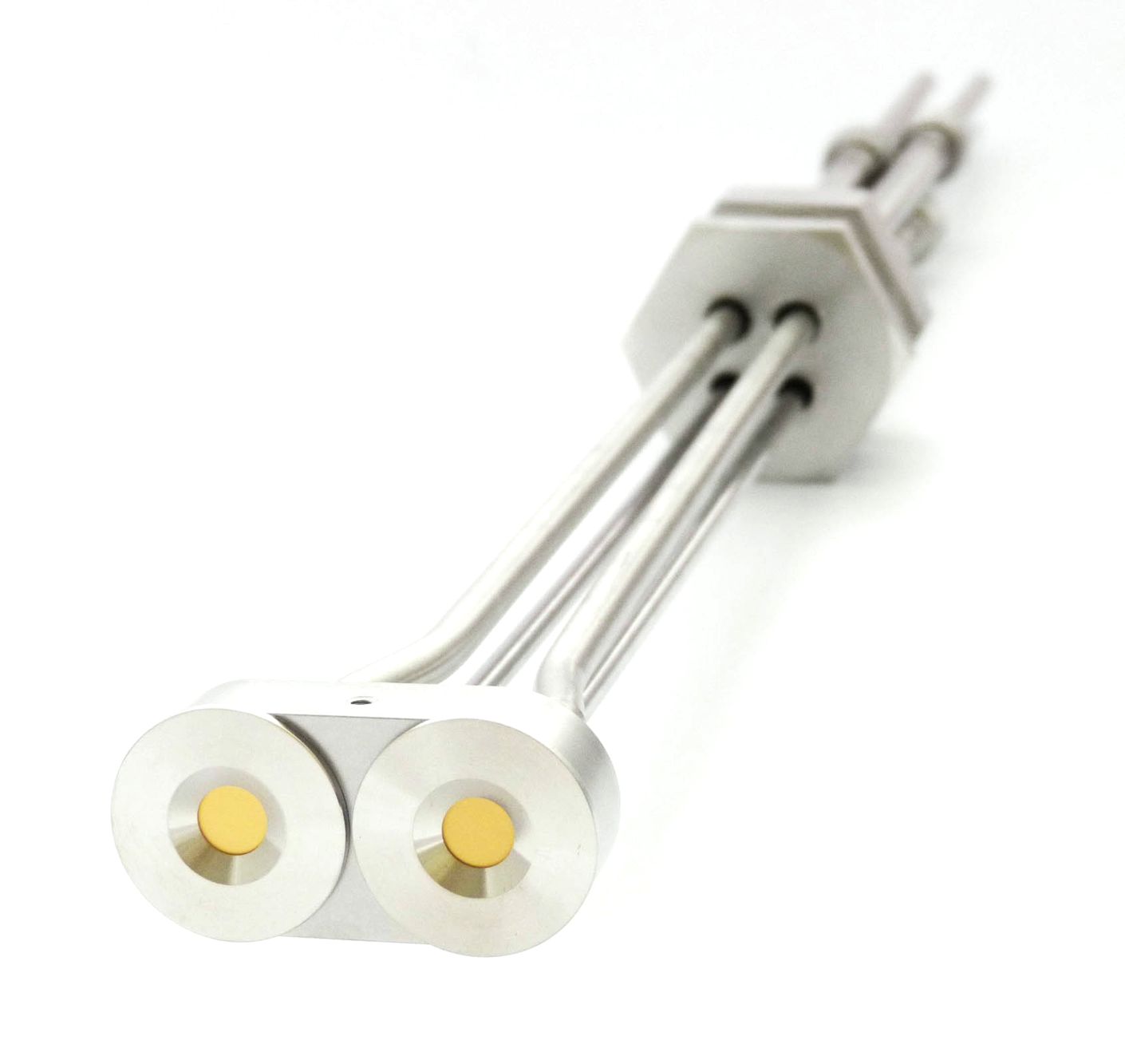

  • Single, Dual, Multi Head Sensors (1, 2, 6, 8, 12, 24)
  • Bakeable/Non-bakeable Sensors (Metal-/O-Ring-Seals, encapsulated electrical wires)
  • Length adjustable/fixed ersions (abrazed to length, sensor and feedthrough separated, UltraTorr connections)
  • Crystal orientation (water cooling top or side mounted)

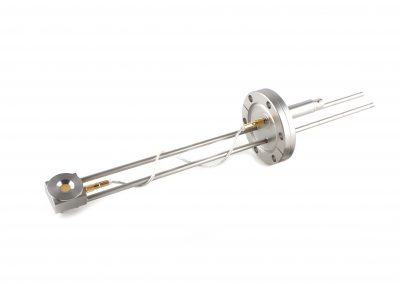

  • Mounting flange (1″ or 32 mm, KF, CF)

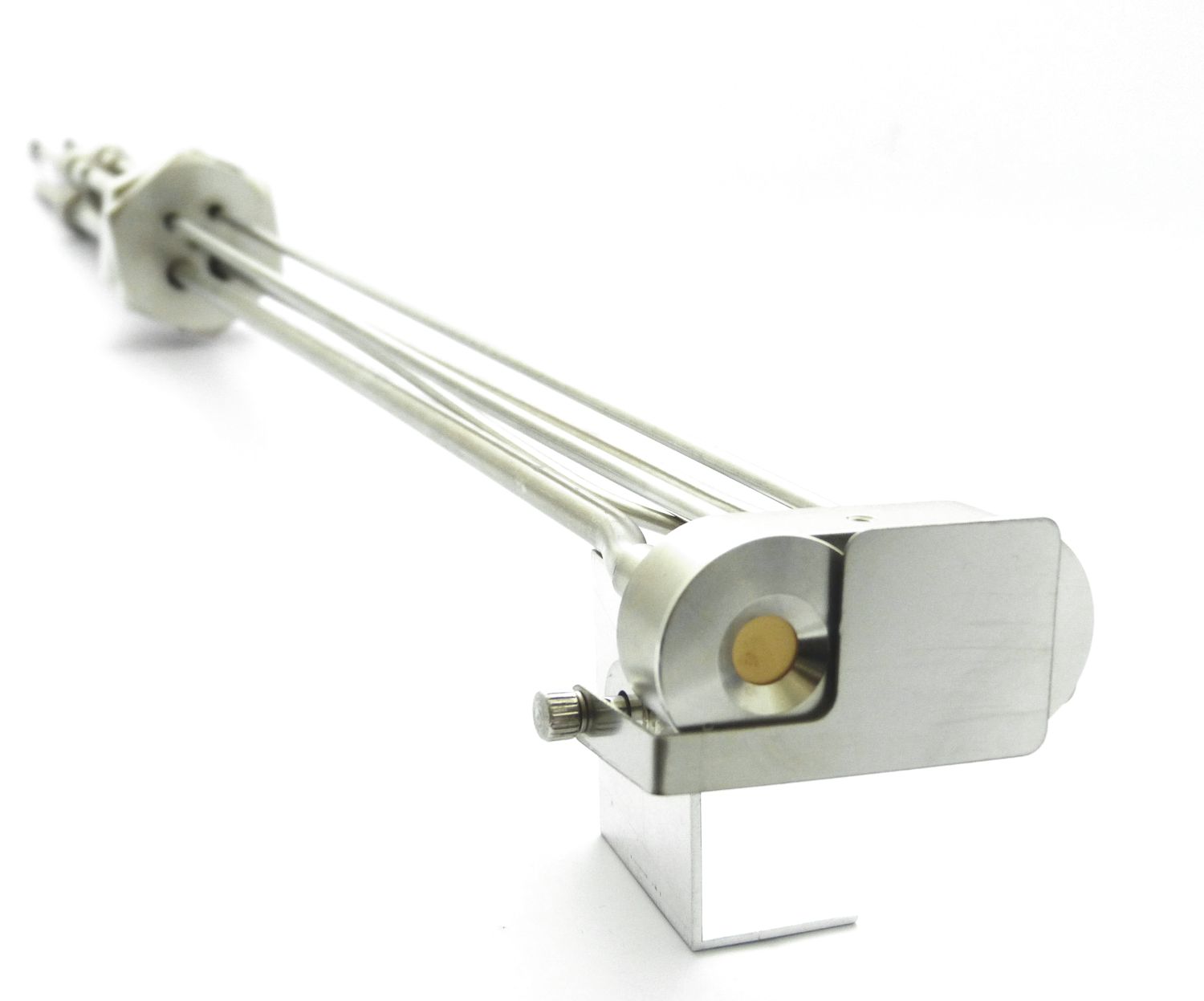

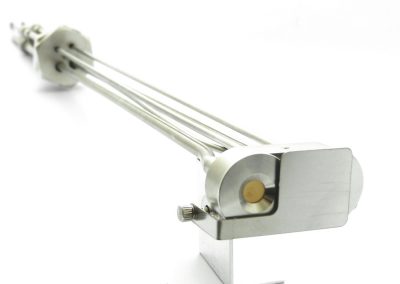

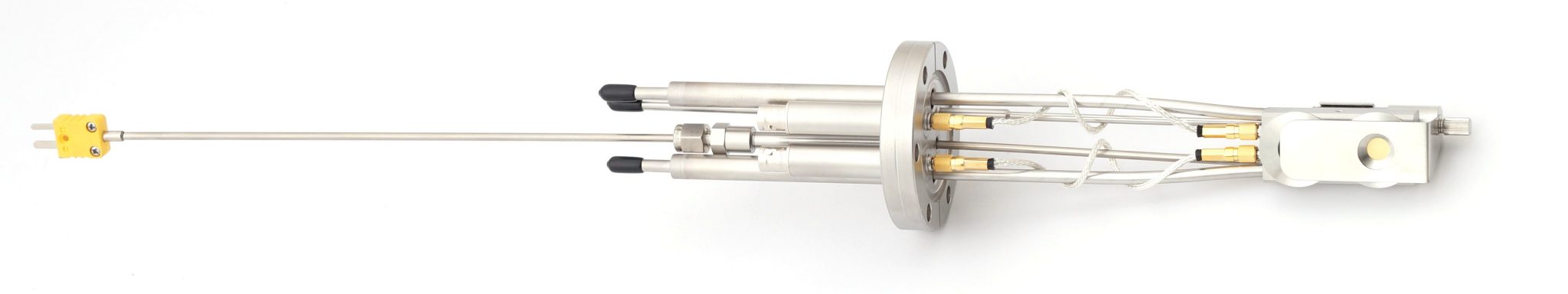

  • Options (pneumat. sensor shutter, heater, thermocouple)

McVac

About McVac Manufacturing Co. Inc.

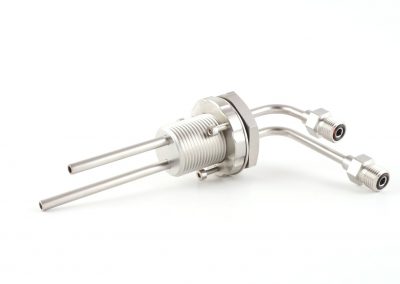

McVac Inc. is an US american manufacturer for quartz crystal sensor heads, feedthroughs and related products. Another specialty is the production of customer-specific high or ultra-high vacuum components such as flanges and gas / water feedthroughs using TIG welding.
